Specifications:

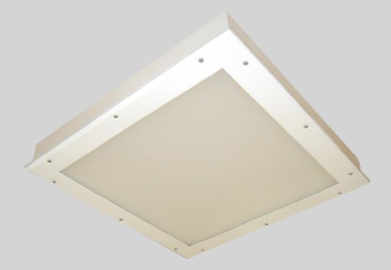

• Luminaire consists of precisely manufactured, CRCA powdercoated Housing, Bottom frame.
• Bottom frame is fixed with captive (loss proof) screws
• Satin finish high efficiency translucence (HET) diffuser is sealed
  with bottom frame and non-hygroscopic VHB gasket to ensure
  dust proofing
• Bottom frame and diffuser, with gasket and pressure clamps,
  ensures dust proofing
• Wishbone mechanism for perfect bottom frame alignment and
  hinging
• Surface finish in epoxy polyester powder coating lends higher
  corrosion resistance & life long finish
• Driver prewired upto terminal block
• Suitable for Class 10,000 & 100,000 cleanroom applications
• Conforms to IS10322/ Part 5/ Sec. 1 : 1987
  Accessories:
  Loop-in, loop-out facility to save cost of cables and switches
  Suitable for 19 mm ET cable entry
  Installation:
  Ceiling suspension with 19 mm OD conduit pipe using
  knock-outs provided on the Housing

Product Description

ELECTRICAL DATA:

Cat. No.                       Power (W)      Rated Voltage
LC20-411-XXX-57-XX      30                        240
LC20-551-XXX-57-XX      42                        240
LC20-721-XXX-57-XX      60                        240
LC20-411-CVL-57-XX      30                        240
LC20-411-SVL-57-XX      30                        240
LC20-551-CVL-57-XX      42                        240
LC20-551-SVL-57-XX      42                        240
LC20-721-CVL-57-XX      60                        240
LC20-721-SVL-57-XX      60                         240

Cat. No.                         Mains Current   Ceiling Cutout   Case Lot
LC20-411-XXX-57-XX      0.13                    495 x 495           02
LC20-551-XXX-57-XX      0.18                   585 x 585           02
LC20-721-XXX-57-XX      0.26                   585 x 585           02
LC20-411-CVL-57-XX      0.13                   495 x 495            02
LC20-411-SVL-57-XX      0.13                   495 x 495            02
LC20-551-CVL-57-XX      0.18                   585 x 585            02
LC20-551-SVL-57-XX      0.18                  585 x 585             02
LC20-721-CVL-57-XX      0.26                  585 x 585             02
LC20-721-SVL-57-XX      0.26                  585 x 585             02
