KEY FEATURES:

COLOR TEMPERATURE: 3000K/4000K/5700K
CRI: > 80
INPUT VOLTAGE: 150 V -270 V
INPUT FREQUENCY: 50 Hz
POWER FACTOR: >0.95
THD: < 10%
DIMMING: Analog /DALI / Wireless
CEILING: True Ceiling

MOUNTING: Suspended/Surface Mounted/Wall Mounted

1.PRODUCT CODE: ASTK9010SFXXIN035
WATTAGE: 35
LUMEN OUTPUT: 5600
LENGTH: 1500mm
WIDTH: 68.4mm

2.PRODUCT CODE: ASTK9010SFXXIN050
WATTAGE: 50
LUMEN OUTPUT: 8000
LENGTH: 1500mm
WIDTH: 68.4mm

3.PRODUCT CODE: ASTK9010SFXXIN070
WATTAGE: 70
LUMEN OUTPUT: 11200
LENGTH: 1500mm
WIDTH: 68.4mm

Product Description

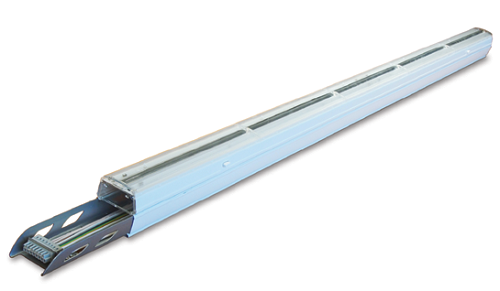

Arraystorm LED Linear Maxim Trunking -Pro Series has been designed especially for providing light to Stores, Warehouses, Retail and other applications where vertical light is important. All system components, trunking rail and luminaire inserts are perfectly matched according to 1416mm/570mm system dimensions. Triple, double and single-length rails can be combined to comply with the space involved. Modules can be positioned in the rails with randomly defined distances according to system dimensions for both trunking rail and individual luminaire installations, meaning that mounting and installation is highly rapid. This is good for the budget in terms of time, costs, logistics, replacements, and installation.

Maxim trunking can accommodate 3 to 9 wires for single phase/3 phase/Emergency as well as dimming wires. Beam angles are available in different distributions - Sharp, Narrow, Wide, Flat, Asymmetric & Double Asymmetric. Options of Trackrall mounting are also available.

Application Area:

1. INDUSTRY
2. RETAIL
3. WAREHOUSE
4. COMMERCIAL
