KEY FEATURES:

COLOR TEMPERATURE: 3000K/4000K/ 5700K
CRI: > 80
INPUT VOLTAGE: 150 V -270 V
INPUT FREQUENCY: 50 Hz
BEAM ANGLE: 120°
POWER FACTOR: >0.95
THD: < 10%
DIMMING: Analog /DALI / Wireless
CEILING: True Ceiling
MOUNTING: Suspended/Recessed
IP RATING: IP65

PRODUCT CODE: ASCR2020SFXXIN018
WATTAGE: 18
LUMEN OUTPUT: 1800
LENGTH: 340mm
HEIGHT: 69mm

PRODUCT CODE: ASCR2021SFXXIN032
WATTAGE: 32
LUMEN OUTPUT: 3200
LENGTH: 595mm
HEIGHT: 69mm

PRODUCT CODE: ASCR2021SFXXIN045
WATTAGE: 45
LUMEN OUTPUT: 4500
LENGTH: 595mm
HEIGHT: 69mm

PRODUCT CODE: ASCR2021SFXXIN060
WATTAGE: 60
LUMEN OUTPUT: 6000
LENGTH: 595mm
HEIGHT: 69mm

Product Description

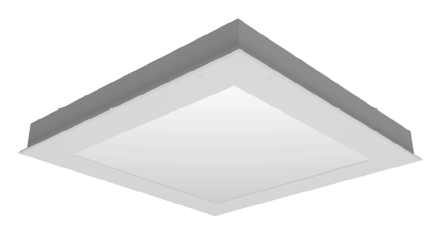

The Arraystorm Epic Bottom Opening Cleanroom (BOCR) Series is a recessed gridlight, which is enclosed and gasketed to protect against infiltration of particles and airborne bacteria suitable for laboratories, pharmaceutical areas, semi- conductor manufacturing areas, healthcare and other cleanroom applications. The uniform luminance across the diffuser generates a soft, voluminous light, making it an ideal replacement for standard fluorescent fixtures. The Epic Series is an LED luminaire for the recessed applications in grid ceiling systems.

Application Area:

1. INDUSTRY
2. EDUCATIONAL INSTITUTE
3. HEALTHCARE
4. COMMERCIAL
