Specification:

Parameters                    Description

Housing                          Dia cast aluminium

Operating Voltage         180-260 v

Efficacy                            >65Im/W

Power Consumption        16/40 W

IP Protection                    IP 65

Lamp                                1xLT16-16/20W
                                         2xLT16-16/20W LED Tube

Mounting                         Bracket

THD                                  <15 %

Power factor                      > 0.9

CCT                                    5700+-300k

CRI                                     >70

Cat ref.                     Wattage

EXTN1LT16-16/20   16/20 W
EXTNL2LT16-16/20   32/40 W

Product Description

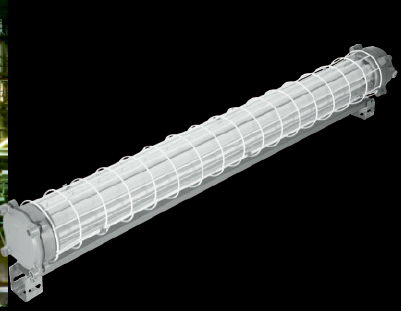

LED Flameproof 1x16/20W & 2x16/20W LED Tube light fixture. Luminaire is recommended for illuminating hazardous areas laden with gases/vapors of Group IIA & IB and Zone 1 & 2. It is specially designed for light module and lamp can replace easily serviced. Maintained from bottom.

Application Area:

Hazardous area laden with gases/ vapours of group IIA & IIB Group and zone 1 & 2
