Specification:

Parameters                    Description

Housing                          Dia cast aluminium

Operating Voltage         120-270 v

Efficacy                            >75Im/W

System Wattage              36/40 W

IP Protection                    IP 65

Mounting                         Bracket

THD                                  <10 %

Power factor                      > 0.9

CCT                                    5700

CRI                                     >70

Cat ref.              Wattage

FWL1315-CDL        36/40W





Product Description

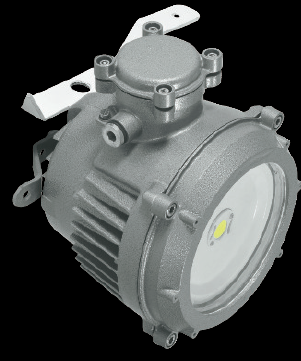

LED Flameproof Wellglass luminarie 40W. Recommended for illuminating hazardous area laden with gases/vapors of group IIA & IIB and Zone 1 & 2. Die cast aluminum housing with toughened clear heat resistant wellglass is cemented into a retaining ring which is fixed with screws to the main housing.

Application Area:

Hazardous area laden with gases/ vapours of group IIA & IIB Group and zone 1 & 2
