Specification:

Parameters                    Description

Housing                          Dia cast aluminium

Operating Voltage         120-270 v

Efficacy                            >15Im/W

System Wattage             12/16 W

IP Protection                    IP 65

Mounting                         Bracket

THD                                  <10 %

Power factor                      > 0.9

CCT                                    5700

CRI                                     >70

Cat ref.                    Wattage

IBFM100-15-CDL       15W

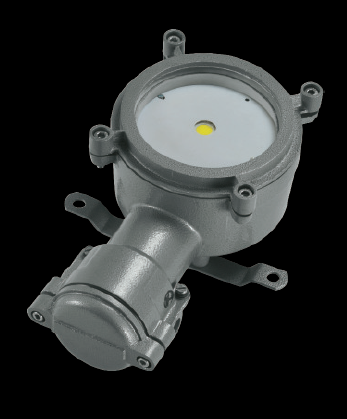

Product Description

Luminarie recommended for illuminating Hazardous area laden with Gases/Vapors of group TIA & IB and Zone 1 & 2. Die cast aluminum housing with toughened clear heat resistant Well Glass is cemented in to a retaining ring which is fixed by means of screws to the main housing.

Application Area:

Hazardous area laden with gases/ vapours of group IIA & IIB Group and zone 1 & 2
