Specification:

Parameters                    Description

Housing                          Dia cast aluminium

Operating Voltage         120-270 v

Efficacy                            >75Im/W

System Wattage             36/40 W

IP Protection                    IP 65

Mounting                         Bracket

THD                                  <10 %

Power factor                      > 0.9

CCT                                    5700

CRI                                     >70

Cat ref.                  Wattage

ISL 1340-CDL            40W

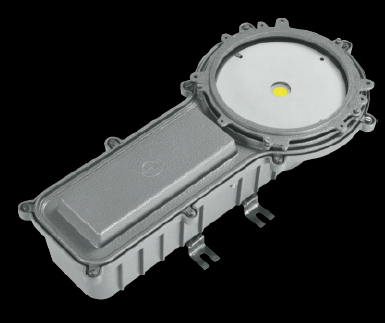

Product Description

This Non sparking-cum-restricted breathing (Ex 'nR') integral well glass and bulkhead luminaire with 40 W LED lamp is recommended for illuminating of Group Zone 2 areas. The heat resistant well glass is fitted fixed to the main body by a retaining ring which is fixed by means of
special screws to the main housing.

Application Area:

Hazardous area laden with gases/ vapours of group IIA & IIB Group and zone 1 & 2
