TECHNICAL DATA

Electrical data

	Nominal wattage	30W
	Rated input voltage	240Vac
	Operating voltage range	100-300Vac
	Power factor	≥0.95
	ITHD	<10%
	Input frequency	50Hz
	Hi Pot Protection	1.5KVac
	Driver Efficiency	≥87%
	EMI/EMC(As Per CISPR15)	Pass
	Surge Protection	4.2 KV
	Dimming	Yes
	Over Voltage Protection	Yes
	Thermal Protection	Yes
	Short Circuit Protection	Yes
	Operating mode	Constant Current
	Photometric data
	Color temperature	3000K/4000K/6000K
	Luminious flux	2700/2850/3000
	Luminious efficacy	90/95/100
	Color rendering index (CRI)	>80
	Standard deviation of color matching (SDCM)	≤5 Step
	Beam angle	110°(±10°)

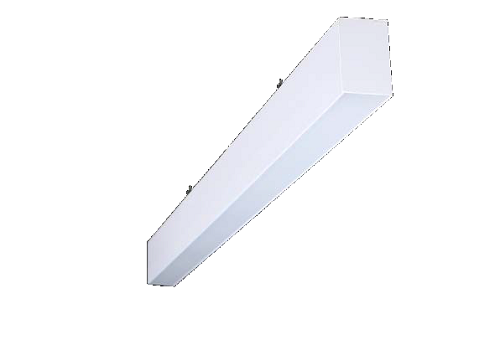

Product Dimmension	L-1200 X W-53 X H-80mm
Height	80mm
Product weight	3.1kg
Body material	Extruded Aluminium
Driver Housing color	White
Product color	white

PRODUCT DATASHEET

Temperatures & operating conditions

Operating temperature range	-10°C to +50°C
Lifespan L70 at 25℃	50000 Hrs
Number of switching cycles	100000
Additional product data
Mounting type	Suspended
Capabilities
Type of connection (For a.c input)	2Core Blue(N) Brown(L)
Type of connection (For led module)	2Core Wire (Blue, Brown)
Certificates & standards
Protection class IK (Impact resistance)	N/A
Product Material Grade	6061
Electrical Protection class	II
Type of Protection (IP rating)	IP20

Product Description

AREAS OF APPLICATION

Offices

Banks

Hospitality

Cafe & Restaurants

Manufacturing

PRODUCT BENEFITS

High luminious efficacy

Energy saving upto 90%

Easy installation with fast connection

PRODUCT FEATURES

High efficiency 100 Lumen per watt

Glare free evenly Distributed

Long Life Span

Aluminium Extrusion housing with high efficient PC low glare diffuser
